Deye On Grid SUN-110K-G03 100KW 110KW Solar 70KW 75KW 80KW 90KW 100KW 110KW Grid Tied Inverter

Max. DC Input Voltage (V)：1000

MPPT Operating Range (V)：200~850

Max. Efficiency：98.8%

Size (mm) ：838W×568H×324D

Weight (kg) ：81

Running Temperature：-25~65℃, >45℃ derating

Max. 6 MPP trackers, Max. efficiency up to 98.7%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Type II DC/AC SPD

Send email to us

Product Detail

Product Tags

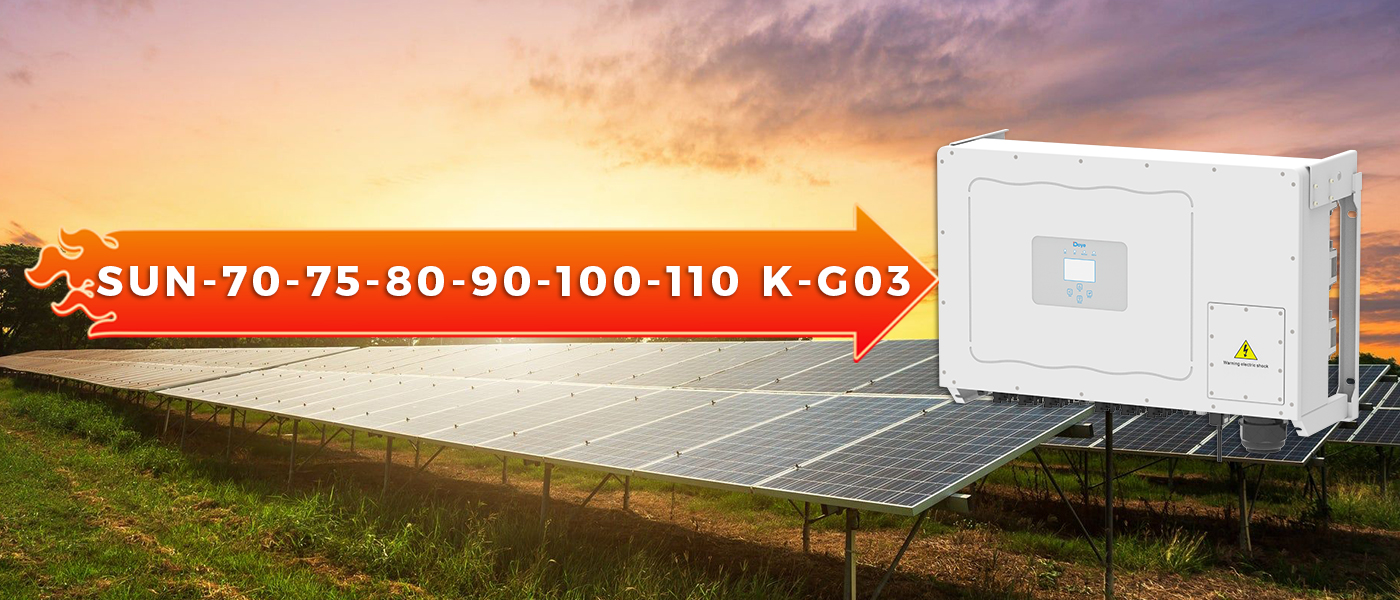

deye 100kw 110kw

The Deye SUN-70K-G03, SUN-75K-G03, SUN-80K-G03, SUN-90K-G03, SUN-100K-G03, and SUN-110K-G03 grid-tied inverters are popular in the commercial and industrial sectors.
Firstly, these inverters utilize advanced MPPT technology to efficiently extract solar energy and maximize power generation, ensuring the stable operation of photovoltaic systems.
Additionally, they feature intelligent monitoring and management functionalities, allowing for remote real-time monitoring of system performance and efficiency. This enables prompt identification and resolution of potential issues, enhancing the overall reliability and safety of the entire system.
Furthermore, this series of inverters are built with high-quality components and excellent heat dissipation designs, providing excellent corrosion resistance and adaptability to various environments.
They can operate in harsh weather conditions and maintain system reliability and stability.

Model	SUN-70K-G03	SUN-75K-G03	SUN-80K-G03	SUN-90K-G03	SUN-100K-G03	SUN-110K-G03
Input Side
Max. DC Input Power (kW)	91	97.5	104	135	150	150
Max. DC Input Voltage (V)	1000
Start-up DC Input Voltage (V)	250
MPPT Operating Range (V)	200~850
Max. DC Input Current (A)	40+40+40+40			40+40+40+40+40+40
Max. Short Circuit Current (A)	60+60+60+60			60+60+60+60+60+60
No.of MPP Trackers	4			4
No.of Strings per MPP Tracker	4
Output Side
Rated Output Power (kW)	70	75	80	90	100	110
Max. Active Power (kW)	77	82.5	88	99	110	121
Nominal Output Voltage / Range (V)	3L/N/PE 220/380V, 230/400V
Rated Grid Frequency (Hz)	50 / 60 (Optional)
Operating Phase	Three phase
Rated AC Grid Output Current (A)	106.1/101.5	113.6/108.7	121.2/115.9	136.4/130.4	151.5/144.9	166.7/159.4
Max. AC Output Current (A)	116.7/111.6	125/119.6	133.3/127.5	150/143.5	166.7/159.4	183.3/175.4
Output Power Factor	0.8 leading to 0.8 lagging
Grid Current THD	<3%
DC Injection Current (mA)	<0.5%
Grid Frequency Range	47~52 or 57~62 (Optional)
Efficiency
Max. Efficiency	98.8%
Euro Efficiency	98.3%
MPPT Efficiency	>99%
Protection
DC Reverse-Polarity Protection	Yes
AC Short Circuit Protection	Yes
AC Output Overcurrent Protection	Yes
Output Overvoltage Protection	Yes
Insulation Resistance Protection	Yes
Ground Fault Monitoring	Yes
Anti-islanding Protection	Yes
Temperature Protection	Yes
Integrated DC Switch	Yes
Remote software upload	Yes
Remote change of operating parameters	Yes
Surge protection	DC Type II / AC Type II
General Data
Size (mm)	838W×568H×324D					838W×568H×346D
Weight (kg)	81
Topology	Transformerless
Internal Consumption	<1W (Night)
Running Temperature	-25~65℃, >45℃ derating
Ingress Protection	IP65
Noise Emission (Typical)	<55 dB
Cooling Concept	Smart cooling
Max. Operating Altitude Without Derating	2000m
Warranty	5 years
Grid Connection Standard	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Operating Surroundings Humidity	0-100%
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features
DC Connection	MC-4 mateable
AC Connection	IP65 rated plug
Display	LCD 240 × 160
Interface	RS485/RS232/Wifi/LAN
