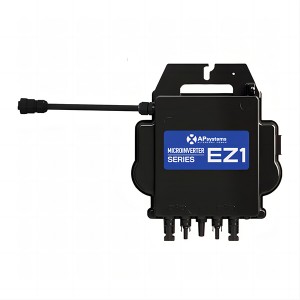

APSystem EZ1-M 2 MPPT Balcony 600W 800W Micro Inverter with Wifi Extension Cable
The Wi-Fi version of EZ1 series are APsystems 3rd generation of dual microinverters, they are dedicated designed for balcony and DIY systems, EZ1 series micorinverters have 2 input channels with independent MPPT and high input current and output power to adapt to today’s larger power module.
Users could directly connect to the EZ1 series with their cell phones through Bluetooth and get the real-time data of the solar systems. Besides direct connection, EZ1 series could also connect to a router through Wi-Fi and send data to cloud servers for remote monitoring.
Through an AC extension cable provided by APsystems, EZ1 series could be plugged into a socket and start output energy, truly easy and convenient grid connection.
EZ1-M
Power: 600W, 800W Micro Inverter
Maximum Input Voltage: 60V
Nominal Output Current: 2.6A / 3.5A
Nominal MPPT Efficiency: 99.5%
Operating Ambient Temperature Range: -40℃ to +65℃
Enclousure Environmental Rating: IP67
Warranty: 12 Years Standard
| Model | EZ1-M |
| Input Data (DC) | |
| Recommended PV Module Power (STC) Range | 300Wp-730Wp+ |
| Peak Power Tracking Voltage | 28V-45V |
| Operating Voltage Range | 16V-60V |
| Maximum Input Voltage | 60V |
| Maximum Input Current | 20A * 2 |
| Isc PV | 25A * 2 |
| Output Data (AC) | |
| Maximum Continuous Output Power | 600VA / 799VA |
| Nominal Output Voltage / Range | 230V / 184V - 253V |
|
Nominal Output Current
|
2.6A / 3.5A
|
|
Nominal Output Frequency/ Range
|
50Hz/48Hz-51Hz
|
|
Default Power Factor
|
0.99 |
|
Efficiency
|
|
|
Peak Efficiency
|
97.3%
|
|
Nominal MPPT Efficiency
|
99.5%
|
|
Night Power Consumption
|
20mW
|
|
Mechanical Dat
|
|
|
Operating Ambient Temperature Range
|
- 40 °C to + 65 °C
|
|
Storage Temperature Range
|
- 40 °C to + 85 °C
|
|
Dimensions (W x H x D)
|
263mm x 218mm x 36.5mm
|
|
Weight
|
2.8kg
|
|
DC Connector Type
|
Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
|
|
Cooling
|
Natural Convection - No Fans
|
|
Enclosure Environmental Rating
|
IP67 |
|
Power Cord (Optional)
|
|
|
Wire Size
|
1.5mm²
|
|
Cable Length
|
5M or Optional
|
|
Plug Type
|
Schuko
|
|
Features
|
|
|
Communication
|
Built-in Wi-Fi and Bluetooth
|
|
Maximum Units Can Be Connected
|
2 |
|
Isolation Design
|
High-Frequency Transformers, Galvanically Isolated
|
|
Energy Management
|
AP EasyPower APP
|
|
Warranty
|
12 Years Standard
|
|
Compliances
|
|
|
Safety, EMC & Grid Compliances
|
EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1;
DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21;
UNE 217002; NTS; RD647; VDE-AR-N 4105
|
