eZsolar M01 800W Micro Inverter Balcony Solar Storage System with 1.5kWh 2.5kWh Lifepo4 Battery
According to a survey, there are currently over one million households in Germany that have installed Balcony Solar Systems, while the number of users with balcony solar storage battery is almost zero. Therefore, in terms of the overall market, there is a huge growth potential for balcony solar energy storage batteries in the future.
We are now introducing the eZsolar brand balcony solar storage battery with capacities of 1.5 kWh and 2.5 kWh, which can meet the daily needs of households.
Currently, our balcony energy storage system includes:
- 800W micro inverter * 1pc
- 410W Sunrising solar panels * 2pc
- 1.5 kWh lithium iron phosphate energy storage battery * 1pc
- solar panel brackets * 2 sets
- 3 meters MC4 photovoltaic cables * 1 set
- 5 meters micro inverter extension cable * 1pc
Setting

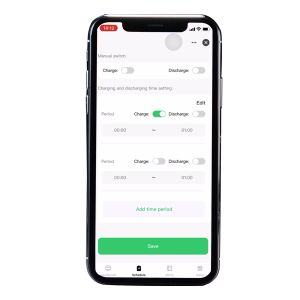

You can set the charging and discharging time on the mobile phone, and also monitor the current status of the battery.
| Battery Type | Lifepo4 Ion Battery (LFP) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 30Ah |
| Total Energy | 1.536kWh |
| Operating Voltage | 48-57.6V |
| DC Input Voltage Range [Udc Min-Udc max] | 10-90V |
| MPPT Voltage | 40-90V |
| Standard Charge / Discharge Current | 15/15A |
| Input Current / Power [PV-BAT] | ≤20A/50W-1000W |
| Output Current / Power [BAT-Inverter] | ≤30A/0W-1200W |
| Cycle Life * 1 | 6000 , 25℃ |
| Depth of Discharge *2 | 100% |
| Product Warranty | 3 Years |
| Performance Warranty | 5 Years |
| Operating Temperature | -20~55℃ |
| Ingress Protection | IP65 |
| Humidity | 5% to 90% [no condensing] |
| Altitude | Below 2000m |
| SOC | LED * 4 |
| State | LED * 1 |
| Wifi | LED * 1 |
| Certification & Safety standards | TUV / CE / IEC / UN38.3 |
| Unit Dimensions [W*H*D] | 490*249.5*170MM |
| Unit Weight | 20kg |
Our strength
We have complete certifications including TUV, CE, IEC, and UN38.3, which meet the certification requirements in different markets.
Our production capacity for this system can reach over 30,000 sets per month. However, there is currently a situation of demand exceeding supply.
